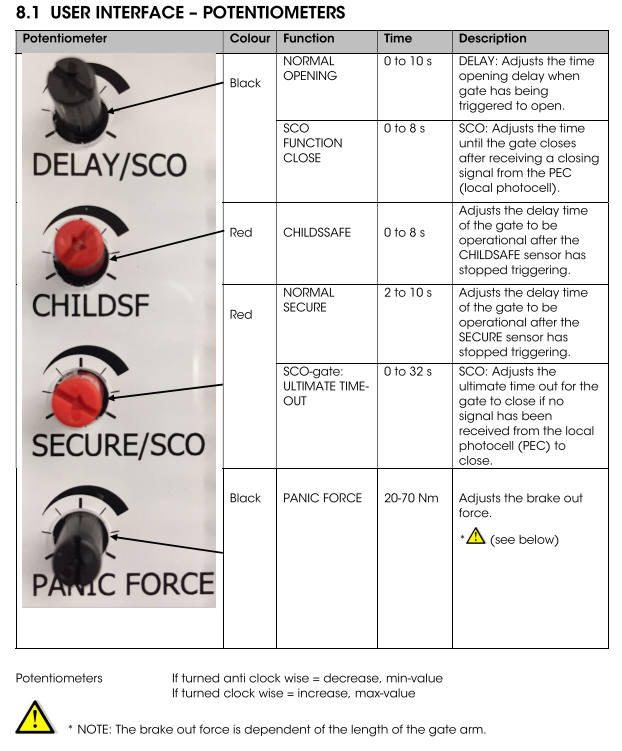

DELAY/SCO and SECURE/SCO have different functions depending on if it's an entrance or exit gate. See explanations above.

On each gate, make the following adjustments:

• LEFT GATE
  • Set DELAY/SCO and SECURE/SCO to maximum/clockwise (100%). To activate slave gate function.
  • Set CHILDSAFE and to minimum/anticlockwise (0%).
  • Set PANIC FORCE to half way (50%).


• RIGHT GATE
  • Set DELAY/SCO just slightly clockwise (25%).

  • Set CHILDSAFE to minimum (0%).

  • Set SECURE/SCO to minimum/anticlockwise (0%).
  • Set PANIC FORCE to half way (50%).

NOTE: Turn all the way left (0%) then all the way right (100%) to determine where 50% is.

NOTE: In order for the Master and Slave function to be operational the gate configuration must be connected with GateCOM crossover cable (Saloon) to the opposing gate. Refer to AlphaGate Manual.

Additional video

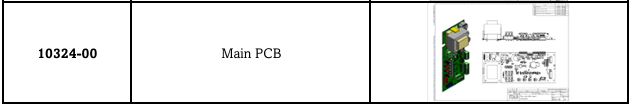

Recommended spare part

- If the Main PCB itself is faulty, below spare part can be ordered.
