This article covers how to setup the Elsema Receiver & remotes and pair them with the receiver installed in the AlphaGate.
Please note that this is our Generation 3 Receiver/Remote Control set with 4-channels.
1. Mount the Receiver

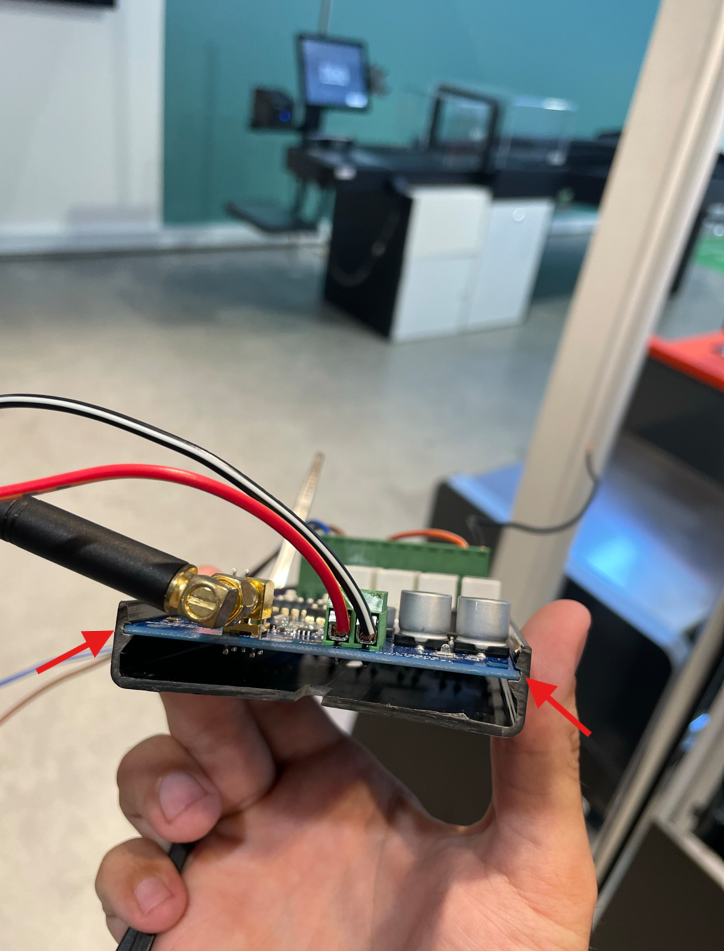

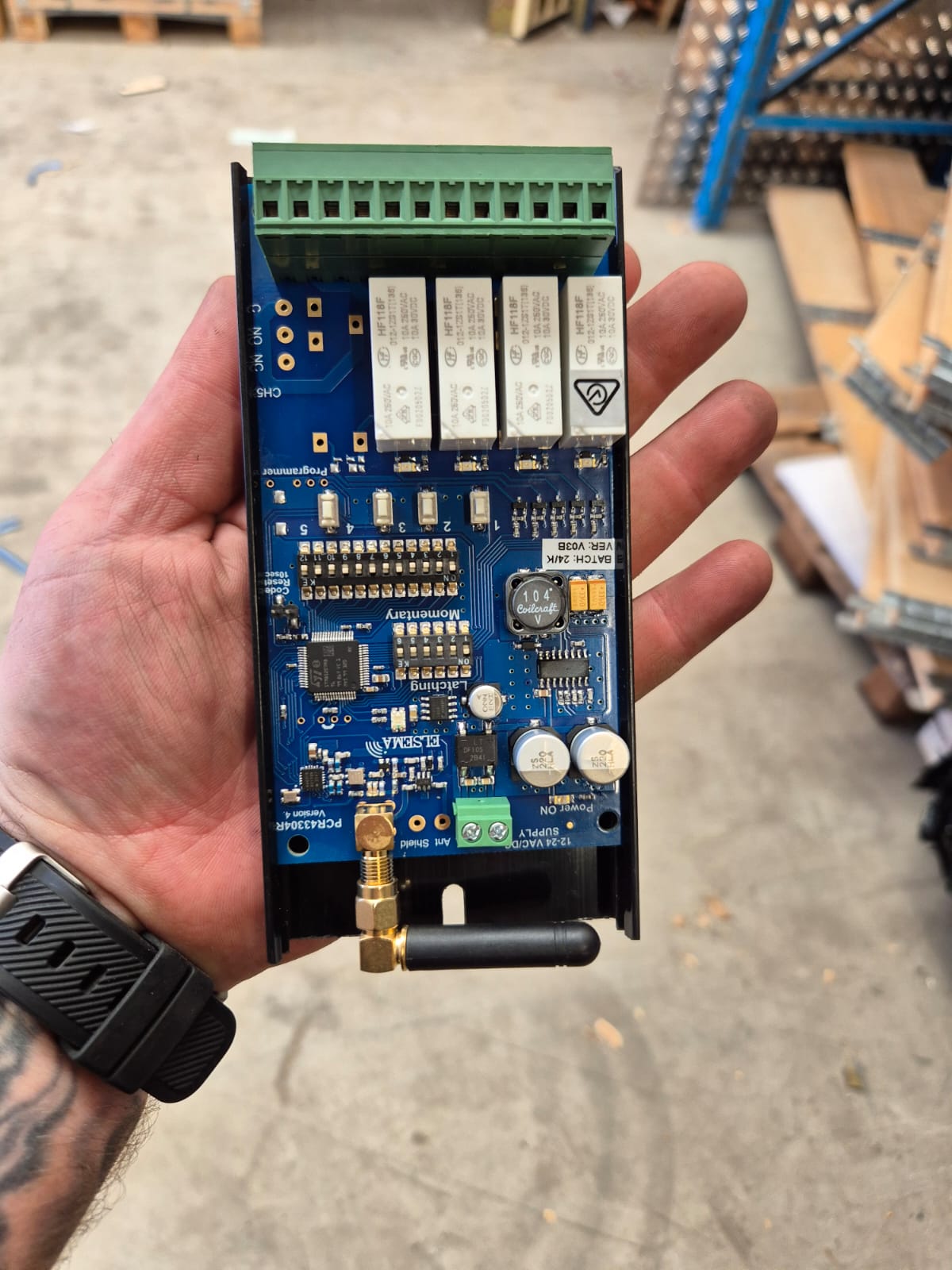

1. Fit the receiver into the plastic bracket. Fit it into the trace, see second picture.

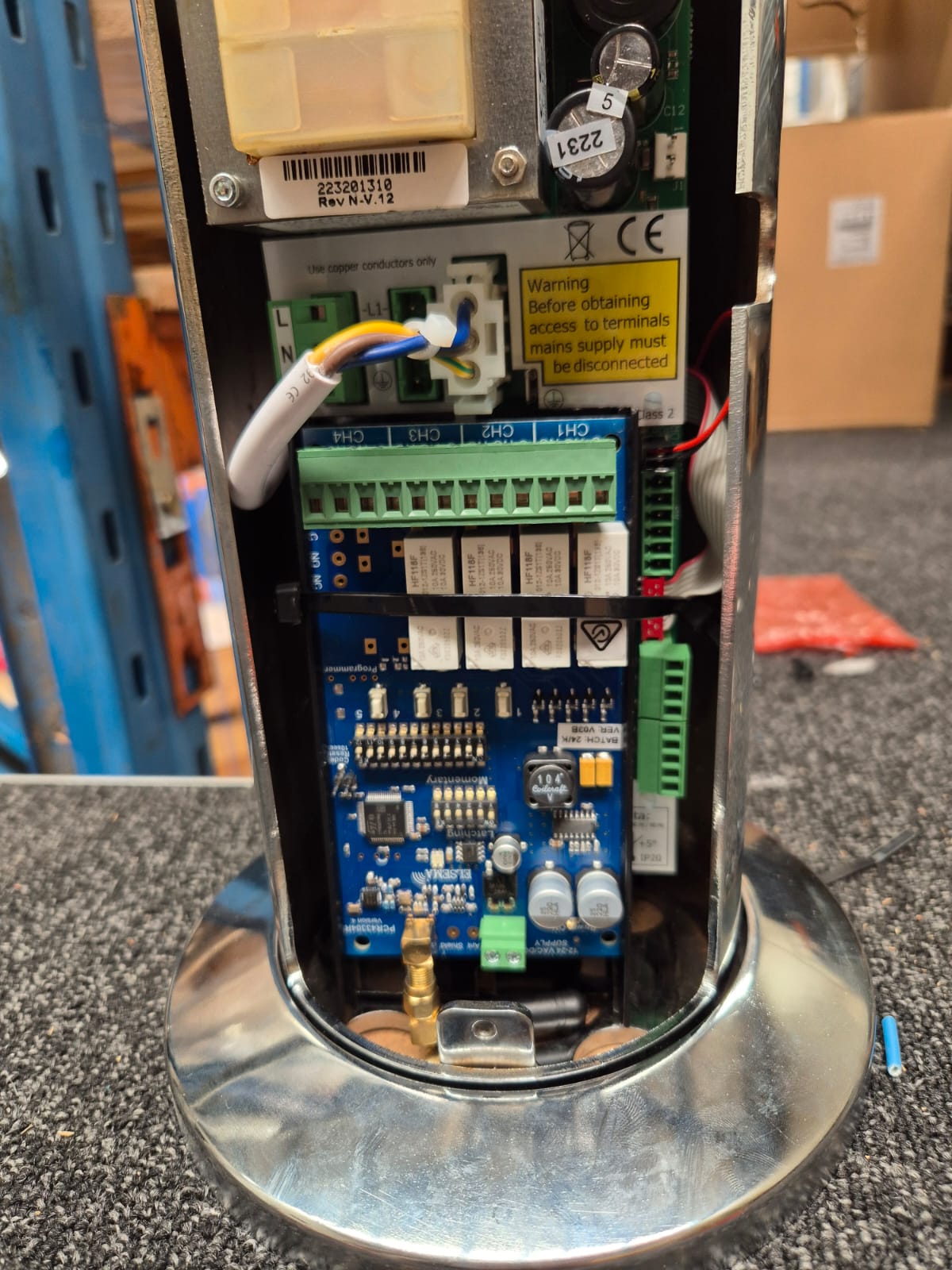

2. Fit the receiver in the right-hand side gate. Place it according to the picture and secure with one cable tie.

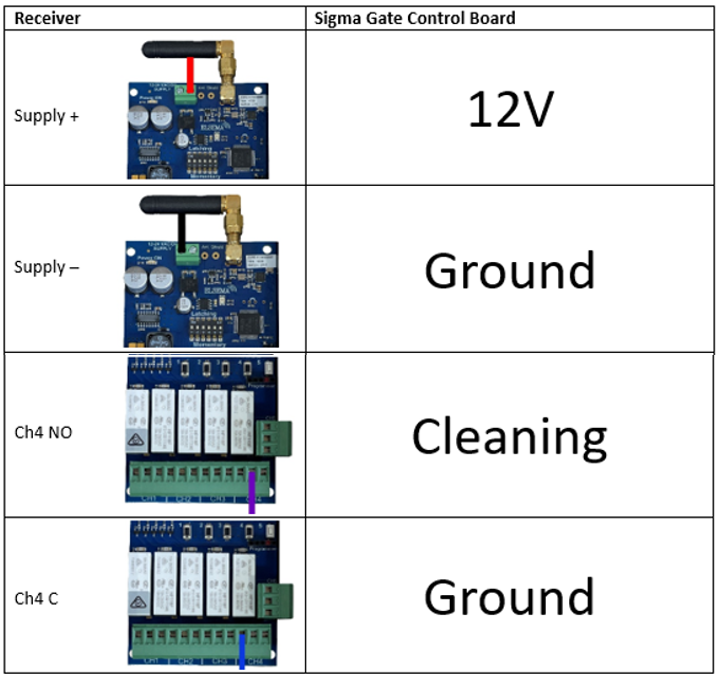

2. Wire the Receiver to AlphaGate Control Board
*Please note that the terminals are misaligned to the labels on the blue face, it is important to count the terminals as displayed above.
Connecting Power
- Open the AlphaGate panel.
- Connect Supply + to 12v on the Alpha control board.
- Connect Supply - to Ground on the Alpha control board.
Relay 4 (Latched/Cleaning Mode)
- Connect Ch4 NO to Cleaning on the Alpha control board.
- Connect Ch4 C to Ground on the Alpha control board.
3. Set the DIP Switches & Pair Remotes

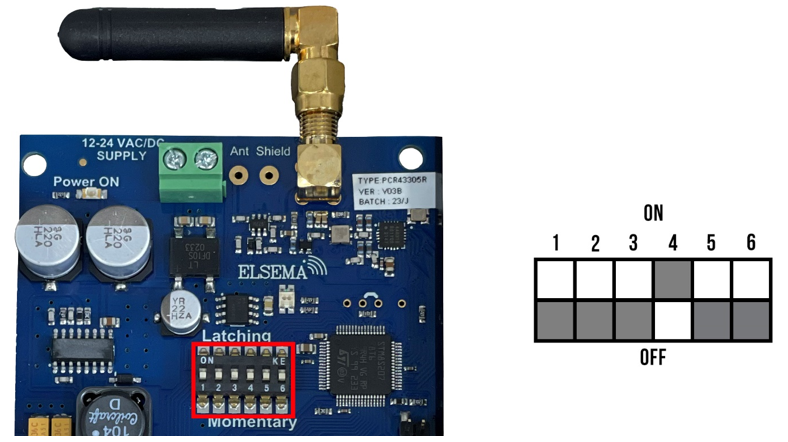

- Change Mode Selection on the 6 DIP switches (outlined in red below) to OFF OFF OFF ON OFF OFF or Down Down Down Up Down Down.
- On all receivers set switches 1-10 (outlined in green below) to match the store number using the examples in the table below. As an example if the store has a number 8 in the store number set DIP switch 8 to the OFF/Down position and ignore any zeros in the store number. If the store has the same number more than once like 8888 only switch 8 must be set to OFF/Down and rest will be ON/Up. (This configuration is the opposite from configuring it for a sigma exit gate)

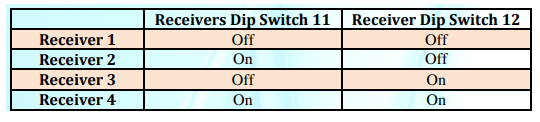

- The table below explains Dip switch 11 and 12. The first receiver should always have Off/Off.
If you the store has two receivers. The first should have Off/Off and the second should have On/Off. Follow the table for all the different set ups.
- Set DIP switches 1-10 in the remote exactly the same as the receiver.
Dip switch 11 and 12 should always be Off/Off.

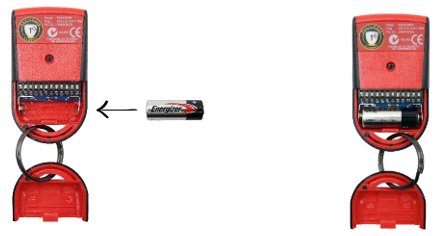

- Lastly insert the battery in the remote and test.
